Lo-fi prototyping with Figma conditionals

Money Means  ·  2024  ·  Prototyping, Research

Problem
Needed personalised, branching prototype flows for user testing, beyond what basic Figma supports
My role
Sole designer: built the entire variable architecture and prototype, ran the first testing sessions
Outcome
Prototype ready for user testing in under two days, entirely within design, no engineering needed

The team needed to test a set of form-based flows with users quickly. The flows required dynamic text to change based on what users had previously entered. Standard Figma prototyping doesn't support this. I used Figma's variables and conditional logic system to build a branching, dynamic prototype that was ready for user testing in under two days.

The challenge

We had a tight research timeline and no engineering capacity available. The flows required personalised text: the prototype needed to remember what a user had selected on a previous screen and reflect it in the copy on subsequent screens.

After a quick team discussion about options (including using a developer to build something, or using Cursor) we agreed that Figma's newer variables system could handle what we needed, if set up correctly. I took it on.

How it works

The prototype uses Figma's component properties and conditional variables to create branching logic. Each screen is built as a component with variable-driven text fields; when a user makes a selection, a variable is set, and subsequent components read that variable to display the appropriate copy.

"Getting the component architecture right from the start is non-negotiable. The variable tree has to be sketched before Figma is opened."

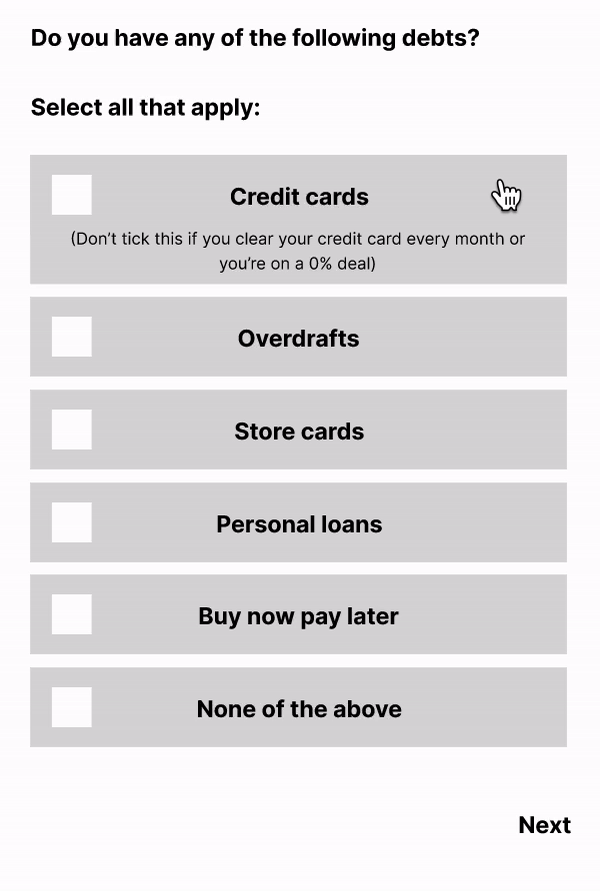

User-facing interaction demo
View interaction

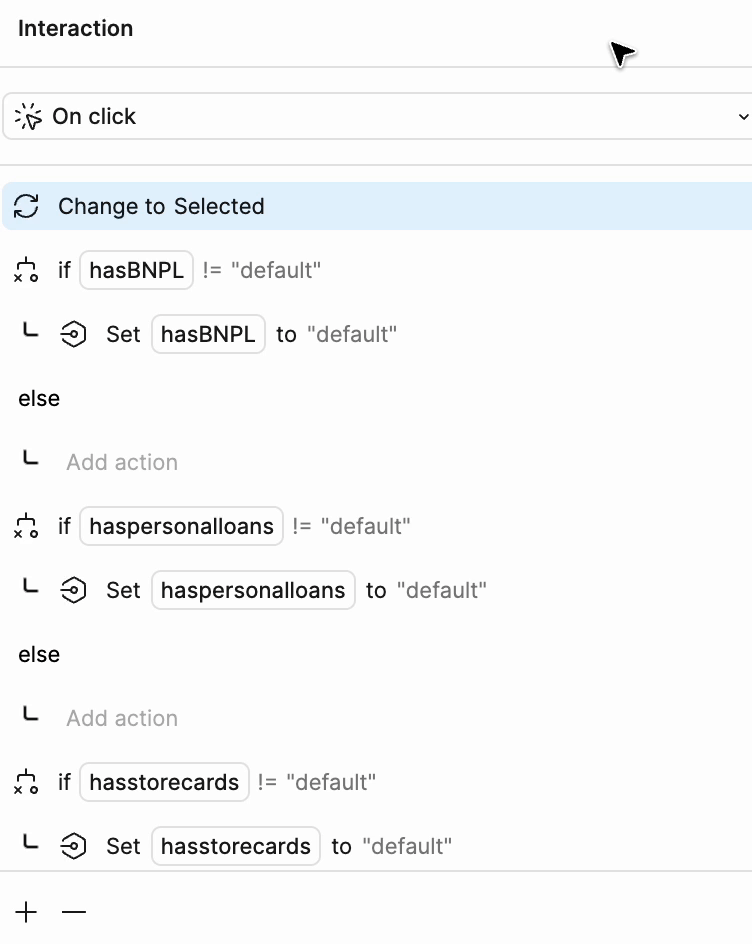

Figma logic structure
View logic

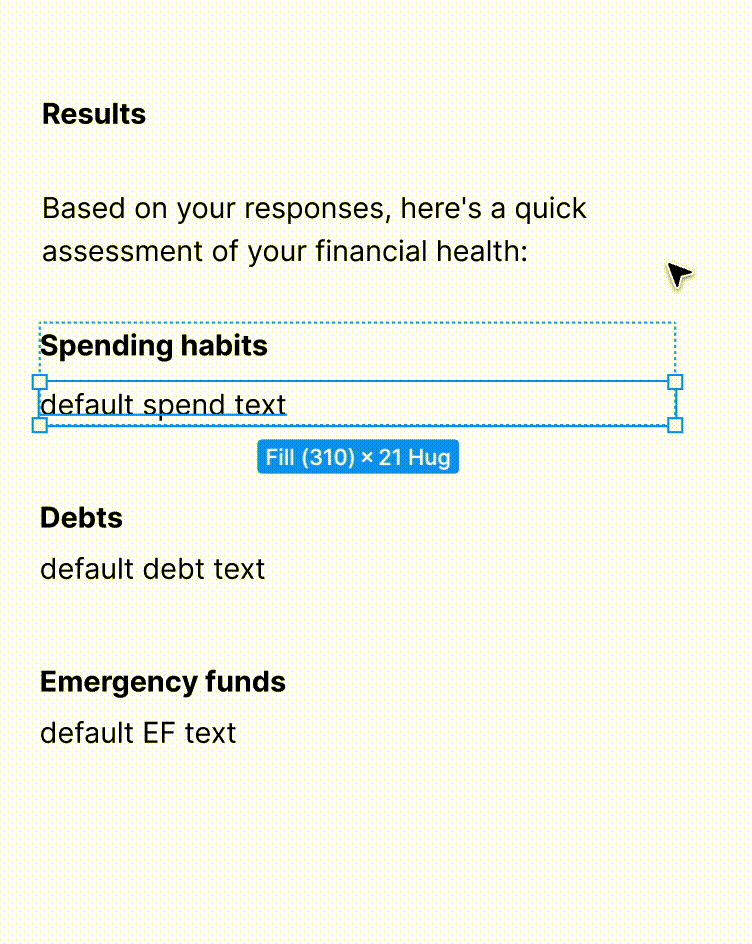

The left GIF shows the user-facing experience: it feels like a natural, responsive flow. The right shows the Figma variable/conditional structure behind it, which is considerably less glamorous but the reason it works.

Extended interaction demo Component and variable structure diagram
1–2 days
Build time including first user testing sessions
No engineers
Built and run entirely by design

Prototype

The prototype is live below; try working through the flow as a user would. Notice how the copy adapts based on your earlier selections.

Interactive Figma prototype: navigate through to see the conditional logic in action

Reflection

Figma's variables system is genuinely powerful but has a real learning curve: the component architecture has to be right from the start, and retrofitting it midway is time-consuming. I'd recommend sketching the full variable and state tree on paper before opening Figma.

This approach works well for flows with a limited number of branching paths. For anything with more than 3–4 variables interacting, a coded prototype (see the Cursor project) becomes more efficient to build and easier to maintain.
